Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader

Name: Heavy Duty Soil Moving Equipment Land Moving Equipment 180 hp Motor Grader
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWG180

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 30 units per month

Delivery Time : 30 days

Packaging Details : Nude

Product Name : Motor Grader

Condition : Brand New

Applicant : Earthmoving farmland & ground leveling

Warranty : One year

Blade width : 3965mm

Operating weight : 15400kg

Contact Now

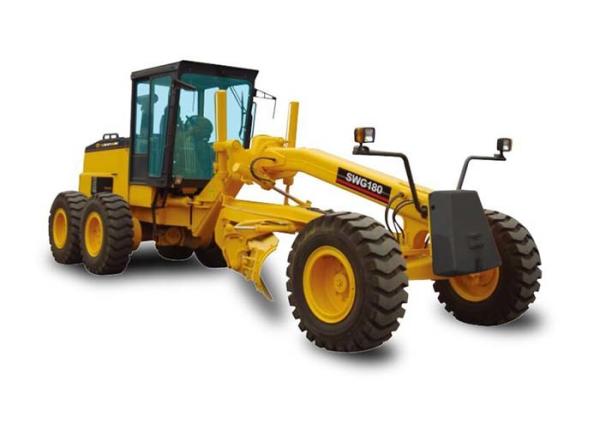

Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader

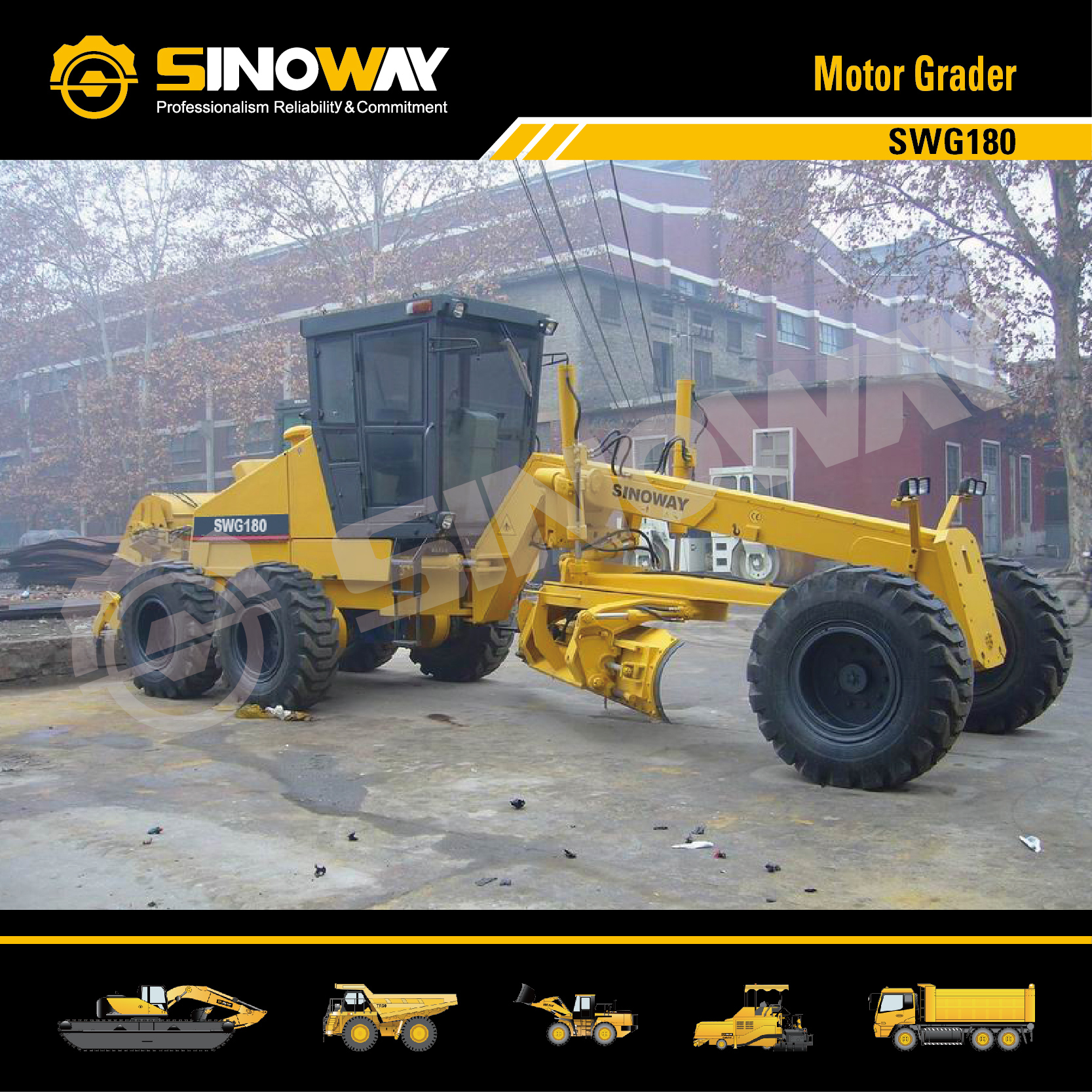

SINOWAY SWG180 Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement.

Main features
Equipped with reliable Shanghchai engine.
Sing-handle electro-hydraulic controlled power shift T/M, 6 forward & 3 reverse shifts maks operation easy and convenient.
Hydraulic lock auto lock/unlock NO-SPIN differential ensure stability and powerful traction
The international matching hydraulic parts are adopted,with reliable operation.
Box-typed frame and advanced T/M enable it to complete heavy duty work.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added.

Engine
Model	Cummins 6BTA5.9
Type	Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power	132KW
Rated speed	2300rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	1.5~3
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.2/5.2
Forward/Reverse II	7.9/11.8
Forward/Reverse III	11.8/25.0
Forward IV	17.9
Forward V	25
Forward VI	36.1
Steering System
Front wheel steering angle	45º(L/R)
Articulated steering angle	25º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	630mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Three stages with No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	18MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	80.3KN
Ground penetration	500mm
Blade width	3965mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	15400kg
Braking System
Service brake	Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	8700mm
Overall width(wheel outside)	2600mm
Overall height	3500mm
Wheel base	5985mm
Front tread	2150mm
Rear tread	2340mm
Tyre size	17.5-25
Service Capacities
Fuel tank	228L
Engine crank case	19L
Hydraulic tank	130L
Gear box	21L
Rear axle	28L
Balance box	23L(each)
Worm gear case	2.5L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
